Comforter Making Machine Computerized Quilting Blanket Quilting Machine

Basic Information
Place of Origin: CHINA
Brand Name: ZOLYTECH
Certification: ISO CERTIFICATE
Model Number: ZLT-YS128
Minimum Order Quantity: 1 set
Price: 42000 USD
Packaging Details: Film or customized
Delivery Time: ONE MONTH
Supply Ability: 10 SETS PER MONTH
Detail Information
Warranty: 1 Year Voltage: 380V,50hz,220V
Condition: New Quilting Width: 3300mm
Needle Bar: 3 Space Between Needle Bars: 76.2, 152.4mm
Space Between Needles: 25.4mm Thickness Of Quilting: ≤30mm
Stitch Lenght: 2-7mm Speed: 60-130m/h
Model Of Needle: 14-21# Main Shaft Speed: 500-1100rpm
Total Power: 5.5KW

Product Description

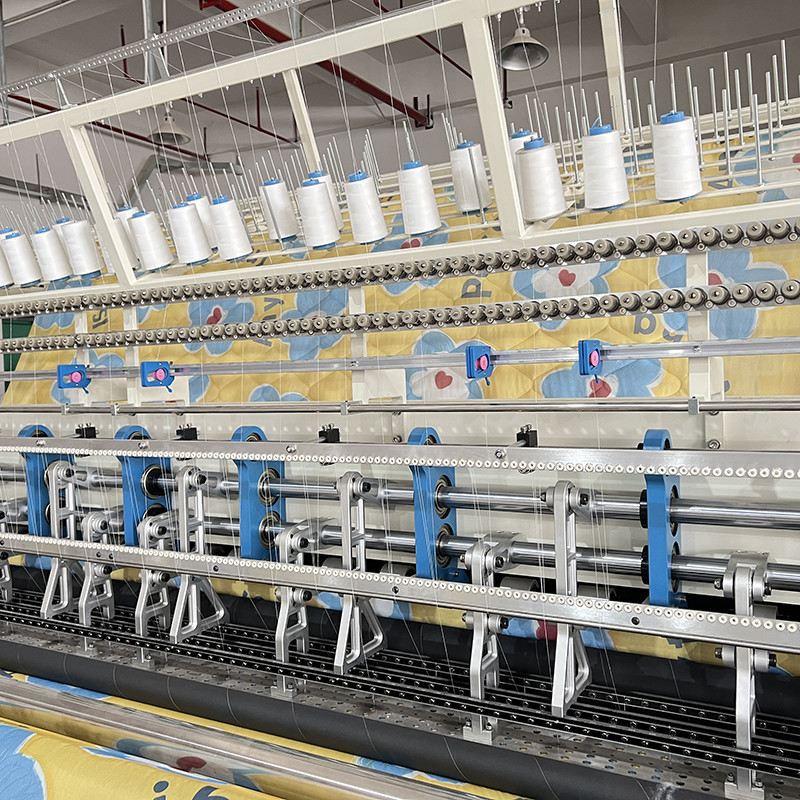

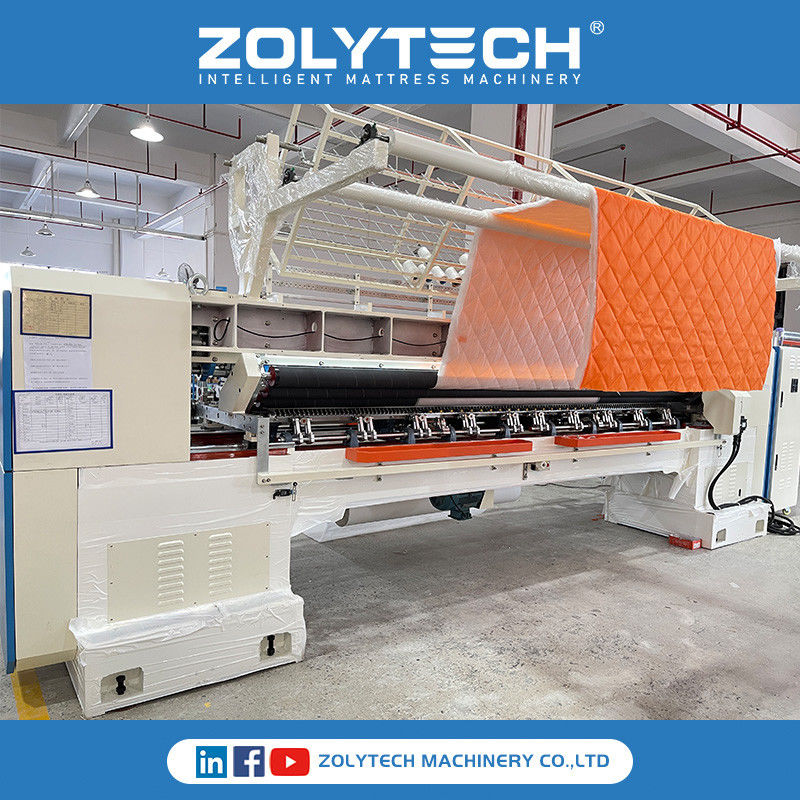

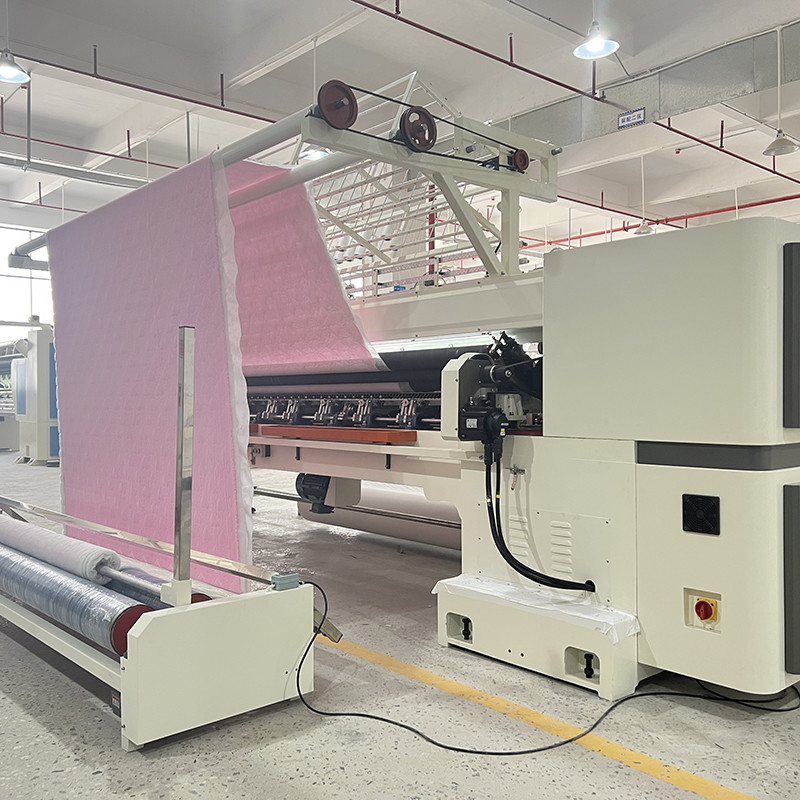

Comforter Making Machine Computerized Quilting Blanket Quilting Machine



ZLT-YS128 Computerized Lock Stitch Multi-needle Quilting Machine



Technical Parameters:



Dimension  5800*1250*1780
Weight  4000kg
Quilting width  3300mm
Quantity of needle bar  3
Stitch length  2-7mm
Speed of production  60-130m/h
X-axis movement displacement  304.8mm
Model of needle 14-21#





Special Functions as follows:



1. Panasonic servo drive system.

2. Needle bar and press plate are connected by cam-free double-swinging device, which is with high precision and durable. This structure can avoid lubrication and dirty material effectively.

3. Both serial patterns and Tack & Jump patterns (360° and 180°) are available..

4. The machine can automatically stop when the up thread breaks.

5. Computerized automatic needle-lifting and speed adjustment

6. New generation of CNC system, advanced machine structure, high precision quilting, dispense with too much parameter adjustment or pattern modification during quilting

7. Bearing, retainer holder, linear guide apply to auto-matic oil system.

8. Main shaft using diameter 40 mm for assuring working condition.

9. Precise CAD drawing.

10. Fault detecting system.



Comforter Making Machine Computerized Quilting Blanket Quilting Machine 0



Comforter Making Machine Computerized Quilting Blanket Quilting Machine 1Comforter Making Machine Computerized Quilting Blanket Quilting Machine 2Comforter Making Machine Computerized Quilting Blanket Quilting Machine 3Comforter Making Machine Computerized Quilting Blanket Quilting Machine 4

FAQ

1. Q:Are you a Manufacturer?

A:Yes, we are a professional INTELLIGENT MATTRESS EQUIPMENT MANUFACTURER over 16 years.



2. Q: What's your payment terms?

A: T/T 30% in advance ,70% will be before shipment under FOB.

T/T 30% in advance ,70% against the copy of BL under CIF.

T/T 30% in advance ,70% LC at sight under CIF.

*The final explanation of the above payment method belongs to us.



3. Q: What's your delivery time?

A: Depending on the quantity of customers.

Usually mass production models will be delivered within 15 days after receiving deposit .

Customized models require negotiation.



4. Q: I'm a small wholesaler. Do you accept small orders?
A: If you are a small wholesaler, no problem, we are willing to grow with you.



5. Q: Can you supply other machines?

A: Yes. we also supply below machines and other raw materials:

Mattress Quilting Machine Series

Mattress Hemming Machine Series

Automatic Whole-Plant Mattress Production Line

Mattress (Pocket) Spring Machine Series

Mattress Packing and Rolling Production Line

Mattress Tape Edge Machine Series

Mattress Flanging Machine Series
Raw materials: Knitted cloth, Non-woven cloth, thread, etc.



The reason why choose us?
1:One-stop service: In addition to products, Zolytech provides complete solutions from pre-sale consulting to after-sale service.
2:Strong quality control system:Raw material control/process control/component quality control/finished product quality inspection/mass production spot check/inspection company check
3:Global business: With 20years of experience, our products are sold to 100 countries and regions and highly recognized by customers.
4:Patent owner: To after clients high performance solutions, we keep investing on new products development and acquired 20 patents.
