| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZOLYTECH |
| Certification: | CE |
| Model Number: | WV8 |
| Minimum Order Quantity: | 1 Pcs |
| Price: | USD 20000-50000 |
| Packaging Details: | STANDARD EXPORT PACKING |
| Delivery Time: | 30 DYAS |
| Supply Ability: | 30 PIECES PER MONTH |
| Quilting Width: | 2450 Mm | Max Thickness Of Material: | 80 Mm |
|---|---|---|---|
| Number Of Servo Motor: | 2 | Brand Of Servo Motor: | PANASONIC |
| Power Of Servo Motor: | 1.5 Kw | Number Of Needle Bar: | 3 |
| Speed: | 800 Rpm | Power: | 7 Kw |
| Stitch Length: | 3-7 Mm | Needle Bar Distance: | 3 Inch |
| Needle Distance: | 1 Inch | X Axis Displacement: | 12 Inch |
| Needle Type: | 23#, 24#, 21#, 22# | Voltage: | 380v, 50hz, 3-phase |
| Brand Of VFD: | DELTA | Operating System: | WINDOWS |
| Tack & Jump: | Yes | Infrared Protection System: | Yes |
| Warranty Period: | 1 Year | ||
| High Light: | Foam Mattress Ultrasonic Quilting Machines,1.5kw Ultrasonic Quilting Machines |
||

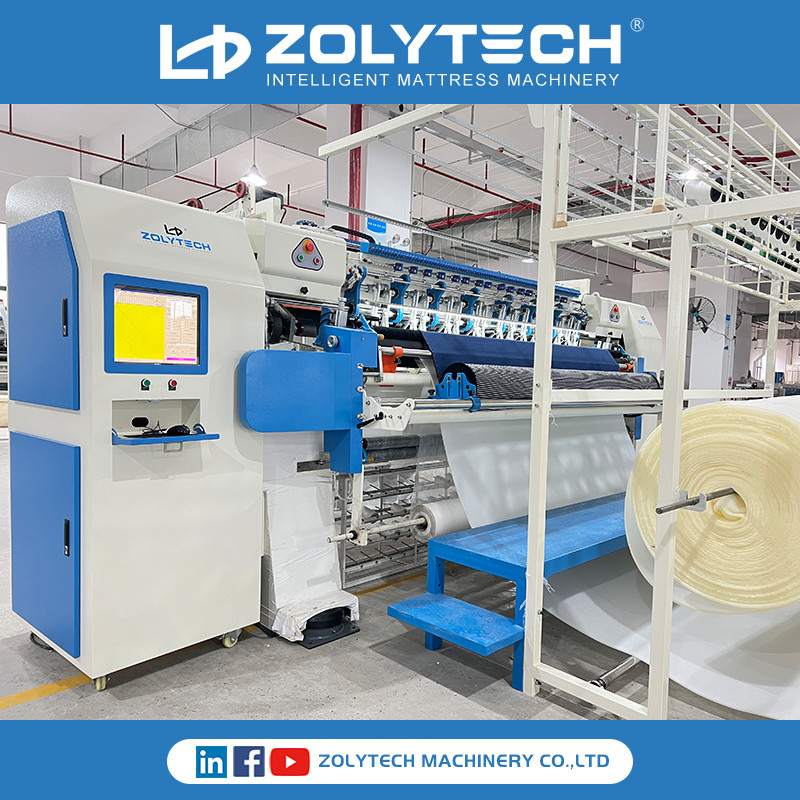

WV8 High speed computerized chain stitch mattress quilting machine 25.4mm needle distance for mattress
Delta VFD (variable-frequency driver) drives main shaft (Z shaft), Panasonic servo driver & motor control the saddle (X shaft) and roller (Y shaft).
Both serial patterns and Tack & Jump patterns (360° and 180°) are available.
Controlling system based on Windows, CAD drawing.
Automatic stop when pre-set processing length is finished, which is saving labor and easy operation.
Automatic detection of machine running condition.
Stronger machine body makes it run more silently and stably.
| Dimension (L*W*H) | 5400*1650*2050mm |
| Weight | 4000kg |
| Quilting width | 2450mm |
| Needle bar distance |
50.8, 76.2, 127mm (5’’) 76.2, 76.2, 152.4mm (6’’) |
| Needle distance | 25.4mm |
| X-axis movement displacement | 304.8mm |
| Quilting thickness | ≤80mm |
| Stitch length | 3-7mm |
| Capacity | 60-230 (m/hour) |
| Needle type | 24/180 23/160 22/140 21/130 |
| Main shaft speed | 300-800rpm |
| Voltage | 380v/50hz 220v/60hz, 3-phase |
| Power |
7kw |
