| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZOLYTECH |
| Certification: | CE certificate and ISO 9001:2000 certificate |
| Model Number: | WV8L |
| Minimum Order Quantity: | 1 pcs |
| Price: | USD 20000-30000 pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 30 days |
| Supply Ability: | 30 pcs /month |
| Model: | WV8L | Dimension: | 5500*1650*2050mm |
|---|---|---|---|
| Power: | 7kw | Capacity: | 60-230m/hour |
| Shaft Speed: | 300-1000rpm | Needle Distance: | 25.4mm |
| Quilting Thickness: | 80mm | Stitch Length: | 3-7mm |
| Weight: | 4600kg | Voltage: | 380v/50hz 220v/60hz |
| High Light: | 7kw Multi Needle Quilting Machine,Quilting Machine For Mattress 4600kg,7kw Quilting Machine For Mattress |
||
Computerized chain stitch multi needle quilting machine for bed and quilt
Technical parameters :
| power | 7kw |
| voltage | 380v/50hz 220v/60hz,3-phase |
| max quilting width | 2550mm |
| machine needle distance | 25.4mm |
| machine stitch length | 3-7mm |
| speed | 60-230 m/hour |
| main shaft speed | 300-1000 rpm |
| x-axis movement displacement | 304.8 mm |
| max quilting thickness | 80mm |
| weight | 4600kg |
Parts of machine:

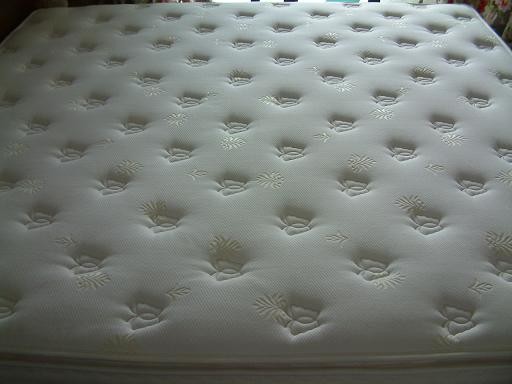

Application :
Advantages :
* Needle bar and plate adopt double rocker machanical manufacturing process, avoid the lube and dirty the fabric effectively.
* Automatic stop when pre-seting processing length is finished, which is saving labor and easy operation.
* CE Certificate
* CNC precision control system, no need to adjust the press plate’s position when the thickness of quilting material varies
* Optional : quilting width 2.55m is available.
* Automatic stop when up or bottom thread is broken, and both up and down safety infrared protection.
* Delta VFD (variable-frequency driver) drives main shaft, panasonic servo driver& motor control the saddle and roller.
Note :
if special quilting function or size is required, please have it made to order.
