| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZOLYTECH |
| Certification: | CE |
| Model Number: | WV8 |
| Minimum Order Quantity: | 1 Pcs |
| Price: | USD 20000-50000 |
| Packaging Details: | STANDARD EXPORT PACKING |
| Delivery Time: | 30 DYAS |
| Supply Ability: | 30 PIECES PER MONTH |
| Quilting Width: | 2450 Mm | Max Thickness Of Material: | 80 Mm |
|---|---|---|---|
| Number Of Servo Motor: | 2 | Brand Of Servo Motor: | PANASONIC |
| Power Of Servo Motor: | 1.5 Kw | Number Of Needle Bar: | 3 |
| Speed: | 800 Rpm | Power: | 7 Kw |
| Stitch Length: | 3-7 Mm | Needle Bar Distance: | 3 Inch |
| Needle Distance: | 1 Inch | X Axis Displacement: | 12 Inch |
| Needle Type: | 23#, 24#, 21#, 22# | Voltage: | 380v, 50hz, 3-phase |
| Brand Of VFD: | DELTA | Operating System: | WINDOWS |
| Tack & Jump: | Yes | Infrared Protection System: | Yes |
| Warranty Period: | 1 Year | ||
| High Light: | Foam Mattress Quilting Machine,1.5kw Foam Mattress Quilting Machine |
||

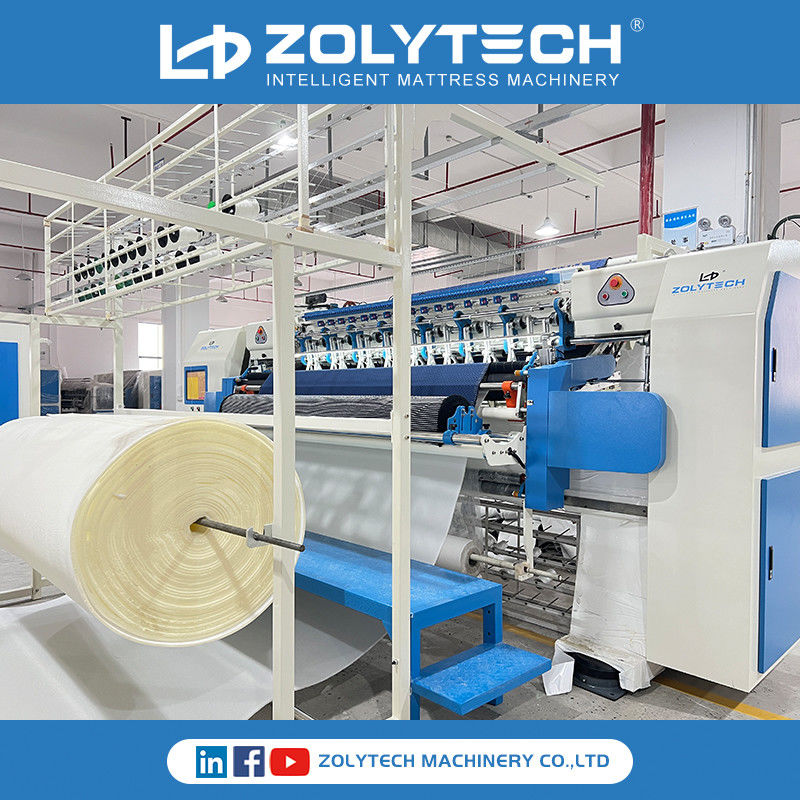

Foam Mattress Machine Quilting Machine Manufacturer

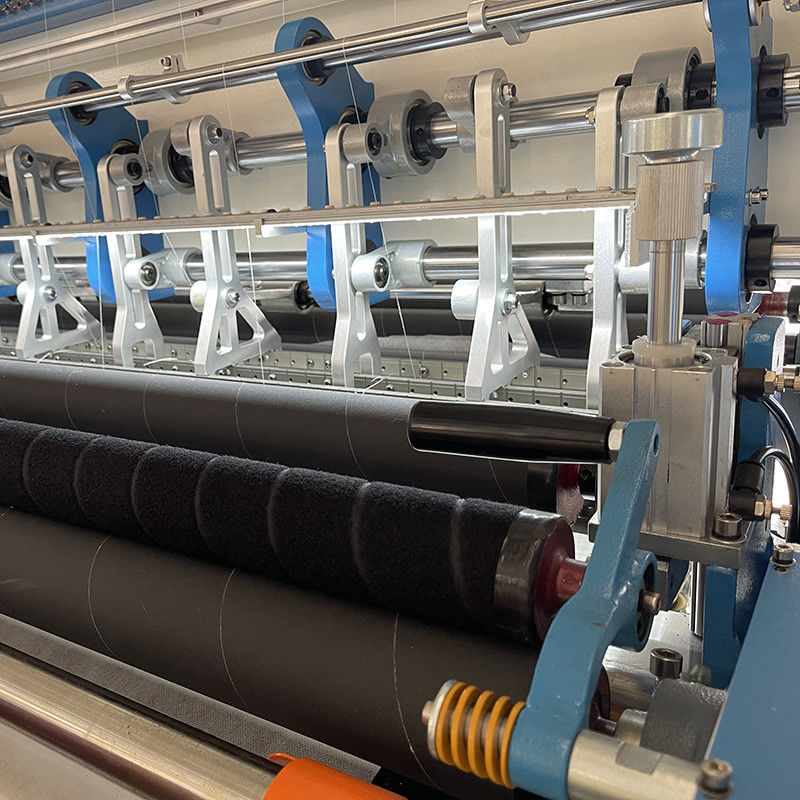

Needle bar and plate adopt double rocker mechanical manufacturing process, avoid the lube and dirty the fabric effectively.

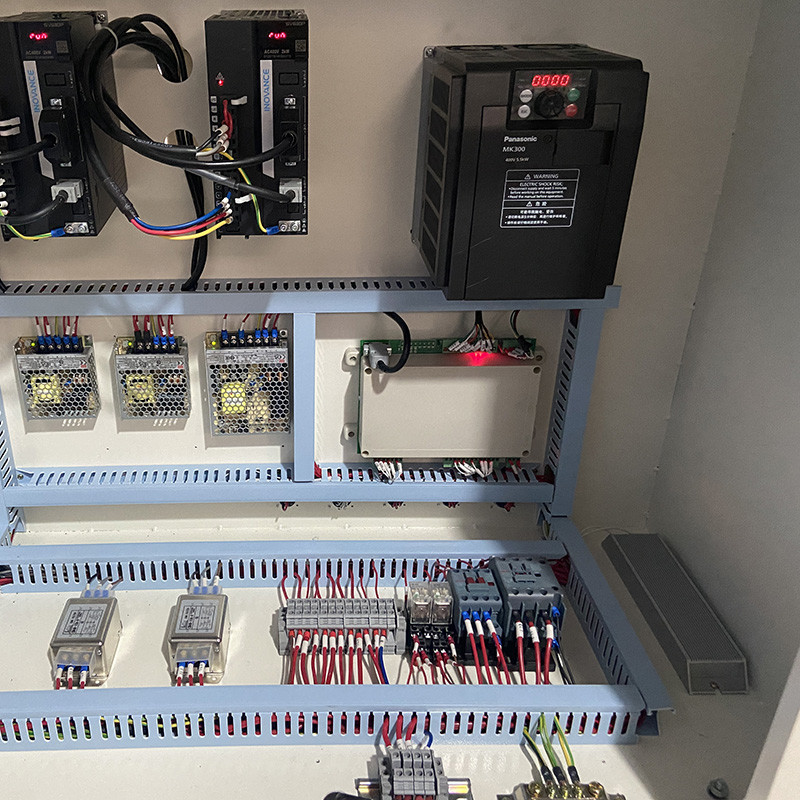

Delta VFD (variable-frequency driver) drives main shaft (Z shaft), Panasonic servo driver & motor control the saddle (X shaft) and roller (Y shaft).
Both serial patterns and Tack & Jump patterns (360° and 180°) are available.
| Dimension (L*W*H) | 5400*1650*2050mm |
| Weight | 4000kg |
| Quilting width | 2450mm |
| Needle bar distance |
50.8, 76.2, 127mm (5’’) 76.2, 76.2, 152.4mm (6’’) |
| Needle distance | 25.4mm |
| X-axis movement displacement | 304.8mm |
| Quilting thickness | ≤80mm |
| Stitch length | 3-7mm |
| Capacity | 60-230 (m/hour) |
| Needle type | 24/180 23/160 22/140 21/130 |
| Main shaft speed | 300-800rpm |
| Voltage | 380v/50hz 220v/60hz, 3-phase |
| Power |
7kw |
FAQ
1. Q:Are you a Manufacturer?
A:Yes, we are a professional INTELLIGENT MATTRESS EQUIPMENT MANUFACTURER over 16 years.
2. Q: How to guarantee the machine quality?
A: Our professional technicians will do repeated tests and adjustments to ensure that the quality of the machine is the best.
3. Q. Do you have some videos where we can see the line producing?
A: Yes, we can provide some videos for reference.
4. Q:What about your price?
A:Our price is very competitive because we are a factory.Please contact us if you are interested in our products.
5. Q: How are you doing in quality control?
A: we have the inspection of the quality supervision department every year and issue the inspection report. Each batch of goods will be strictly controlledControlled,
there will be quality regulations within the company to ensure that each batch of products are qualified and of the best quality.
6. Q: Can you supply other machines?
A: Yes. we also supply below machines and other raw materials:
Mattress Quilting Machine Series
Mattress Hemming Machine Series
Automatic Whole-Plant Mattress Production Line
Mattress (Pocket) Spring Machine Series
Mattress Packing and Rolling Production Line
Mattress Tape Edge Machine Series
Mattress Flanging Machine Series
Raw materials: Knitted cloth, Non-woven cloth, thread, etc.
