| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZOLYTECH |
| Certification: | CE |
| Model Number: | WV8 |
| Minimum Order Quantity: | 1 Pcs |
| Price: | USD 20000-50000 |
| Packaging Details: | STANDARD EXPORT PACKING |
| Delivery Time: | 30 DYAS |
| Supply Ability: | 30 PIECES PER MONTH |
| Quilting Width: | 2450 Mm | Max Thickness Of Material: | 80 Mm |
|---|---|---|---|
| Number Of Servo Motor: | 2 | Brand Of Servo Motor: | PANASONIC |
| Power Of Servo Motor: | 1.5 Kw | Number Of Needle Bar: | 3 |
| Speed: | 800 Rpm | Power: | 7 Kw |
| Stitch Length: | 3-7 Mm | Needle Bar Distance: | 3 Inch |
| Needle Distance: | 1 Inch | X Axis Displacement: | 12 Inch |
| Needle Type: | 23#, 24#, 21#, 22# | Voltage: | 380v, 50hz, 3-phase |
| Brand Of VFD: | DELTA | Operating System: | WINDOWS |
| Tack & Jump: | Yes | Infrared Protection System: | Yes |
| Warranty Period: | 1 Year | ||
| High Light: | 800rpm Mattresses Quilting Machine,25.4mm Needle Distance Quilting Machine |
||

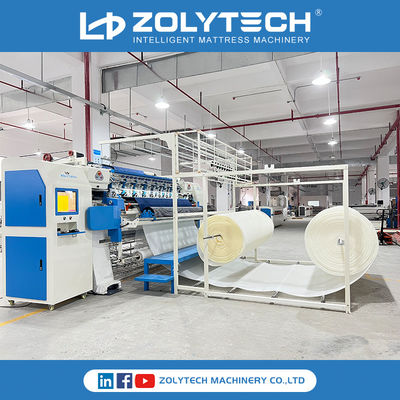

ZOLYTECH WV8 1000rpm multi-needle quilting machine high speed computerized chain stitch for quilts and comforters
Needle bar and plate adopt double rocker mechanical manufacturing process, avoid the lube and dirty the fabric effectively.
Delta VFD (variable-frequency driver) drives main shaft (Z shaft), Panasonic servo driver & motor control the saddle (X shaft) and roller (Y shaft).
Both serial patterns and Tack & Jump patterns (360° and 180°) are available.
Controlling system based on Windows, CAD drawing.
Automatic stop when pre-set processing length is finished, which is saving labor and easy operation.
Stronger machine body makes it run more silently and stably.
| Dimension (L*W*H) | 5400*1650*2050mm |
| Weight | 4000kg |
| Quilting width | 2450mm |
| Needle bar distance |
50.8, 76.2, 127mm (5’’) 76.2, 76.2, 152.4mm (6’’) |
| Needle distance | 25.4mm |
| X-axis movement displacement | 304.8mm |
| Quilting thickness | ≤80mm |
| Stitch length | 3-7mm |
| Capacity | 60-230 (m/hour) |
| Needle type | 24/180 23/160 22/140 21/130 |
| Main shaft speed | 300-800rpm |
| Voltage | 380v/50hz 220v/60hz, 3-phase |
| Power |
7kw |
FAQ
1. Q:Are you a Manufacturer?
A:Yes, we are a professional INTELLIGENT MATTRESS EQUIPMENT MANUFACTURER over 16 years.
2. Q: How to guarantee the machine quality?
A: Our professional technicians will do repeated tests and adjustments to ensure that the quality of the machine is the best.
3. Q: What's your payment terms?
A: T/T 30% in advance ,70% will be before shipment under FOB.
T/T 30% in advance ,70% against the copy of BL under CIF.
T/T 30% in advance ,70% LC at sight under CIF.
*The final explanation of the above payment method belongs to us.
4. Q:What about your price?
A:Our price is very competitive because we are a factory.Please contact us if you are interested in our products.
5. Q: Whats your warranty time ? What you can supply to us after we bought your machine?
A: We provide one year warranty, all machine main parts can be replaced for free within 1 year if broken (not including error operation).
Our engineer available to provided overseas professional technical operation training.
6. Q: Can you supply other machines?
A: Yes. we also supply below machines and other raw materials:
Mattress Quilting Machine Series
Mattress Hemming Machine Series
Automatic Whole-Plant Mattress Production Line
Mattress (Pocket) Spring Machine Series
Mattress Packing and Rolling Production Line
Mattress Tape Edge Machine Series
Mattress Flanging Machine Series
Raw materials: Knitted cloth, Non-woven cloth, thread, etc.
