Multi Needle Quilting Machine Servo Motor Quilting Machine Multi Needle Chain Stitch Quilting Machine

Basic Information
Place of Origin: CHINA
Brand Name: ZOLYTECH
Certification: ISO CERTIFICATE
Model Number: ZLT-YS64
Minimum Order Quantity: 1 set
Price: 42000 USD
Packaging Details: Film or customized
Delivery Time: ONE MONTH
Supply Ability: 10 SETS PER MONTH
Detail Information
Warranty: 1 Year Voltage: 380V,50hz,220V
Condition: New Quilting Width: 1700mm
Needle Bar: 2 Space Between Needle Bars: 76.2mm
Space Between Needles: 25.4mm Thickness Of Quilting: ≤30mm
Stitch Lenght: 2-7mm Speed: 60-150m/h
Model Of Needle: 14-21# Main Shaft Speed: 500-1100rpm
Total Power: 4.0KW
High Light:

Servo Motor Multi Needle Quilting Machine

,

76.2mm Multi Needle Quilting Machine

,

Chain Stitch Multi Needle Quilting Machine


Product Description

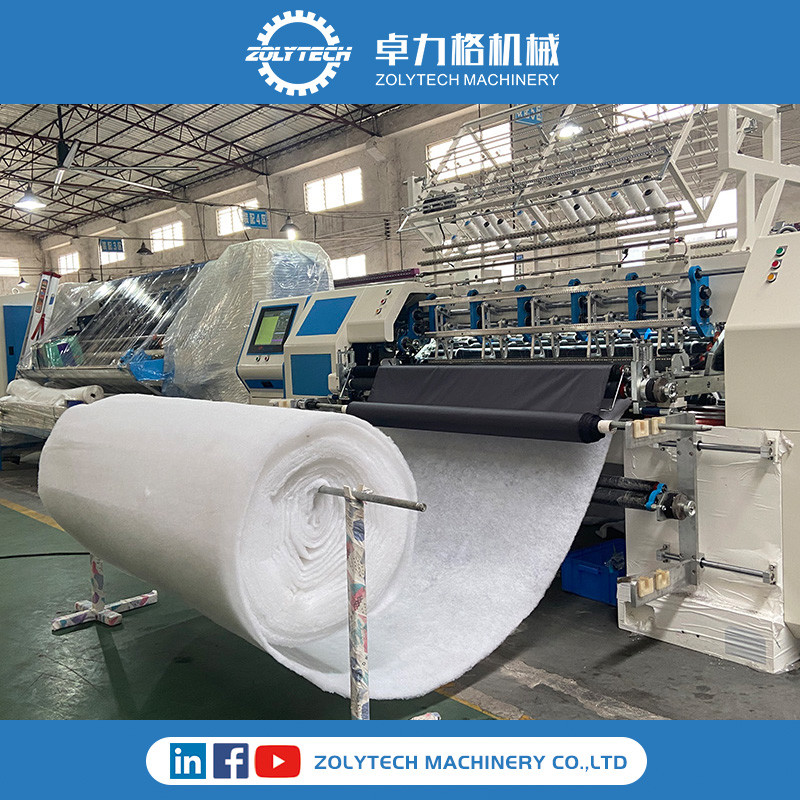

ZOLYTECH Multi Needle Quilting Machine Servo Motor Quilting Machine Multi Needle Chain Stitch Quilting Machine



ZLT-YS64 Computerized Lock Stitch Multi-needle Quilting Machine



Technical Parameters:



Dimension  3820*1250*1780
Weight  2800kg
Quilting width  1700mm
Quantity of needle bar  2
Stitch length  2-7mm
Speed of production  60-150m/h
X-axis movement displacement  203.2mm
Model of needle 14-21#





Special Functions as follows:



1. Panasonic servo drive system.

2. Needle bar and press plate are connected by cam-free double-swinging device, which is with high precision and durable. This structure can avoid lubrication and dirty material effectively.

3. Both serial patterns and Tack & Jump patterns (360° and 180°) are available..

4. Computerized automatic needle-lifting and speed adjustment

5. New generation of CNC system, advanced machine structure, high precision quilting, dispense with too much parameter adjustment or pattern modification during quilting

6. Main shaft using diameter 40 mm for assuring working condition.



Multi Needle Quilting Machine Servo Motor Quilting Machine Multi Needle Chain Stitch Quilting Machine 0



Multi Needle Quilting Machine Servo Motor Quilting Machine Multi Needle Chain Stitch Quilting Machine 1Multi Needle Quilting Machine Servo Motor Quilting Machine Multi Needle Chain Stitch Quilting Machine 2Multi Needle Quilting Machine Servo Motor Quilting Machine Multi Needle Chain Stitch Quilting Machine 3Multi Needle Quilting Machine Servo Motor Quilting Machine Multi Needle Chain Stitch Quilting Machine 4

FAQ

1. Q:Are you a Manufacturer?

A:Yes, we are a professional INTELLIGENT MATTRESS EQUIPMENT MANUFACTURER over 16 years.



2. Q:How do you control the quality?
A:Our company is CE certificated .We have many inspectors and every product will have been tested for 4-5 processes.We welcome customers visit to our factory.



3. Q: What's your payment terms?

A: T/T 30% in advance ,70% will be before shipment under FOB.

T/T 30% in advance ,70% against the copy of BL under CIF.

T/T 30% in advance ,70% LC at sight under CIF.

*The final explanation of the above payment method belongs to us.



4. Q: How to guarantee the machine quality?
A: Our professional technicians will do repeated tests and adjustments to ensure that the quality of the machine is the best.



5. Q: Can you supply other machines?

A: Yes. we also supply below machines and other raw materials:

Mattress Quilting Machine Series

Mattress Hemming Machine Series

Automatic Whole-Plant Mattress Production Line

Mattress (Pocket) Spring Machine Series

Mattress Packing and Rolling Production Line

Mattress Tape Edge Machine Series

Mattress Flanging Machine Series
Raw materials: Knitted cloth, Non-woven cloth, thread, etc.
