High Speed Chain Stitch Computerized Quilting Machine For Mattress 25.4mm Needle Distance

Basic Information
Place of Origin: CHINA
Brand Name: ZOLYTECH
Certification: CE
Model Number: WV12
Minimum Order Quantity: 1 pcs
Price: USD 20000-30000 /pcs
Packaging Details: Wooden box
Delivery Time: 30 workdays
Supply Ability: 30 /pcs/month
Detail Information
Dimension(L*W*H): 5400*1650*2050mm Weight: 4800KG
Quilting Width: 2450mm Needle Bar Distance: 50.8, 76.2, 127(5”)
Needle Distance: 25.4mm X-axis Movement Displacement: 304.8mm
Brand Of Servo Motor: PANASONIC Brand Of VFD: PANASONIC
Production Speed: 60-260m/m Stitch Size: 3-8mm
No. Of Need Bars: 3 Power: 10KW
Quilting Thickness: 80mm
High Light:

Mattress 25.4mm Needle Computerized Quilting Machine

,

10KW Computerized Quilting Machine

,

2450mm Width Computerized Quilting Machine


Product Description

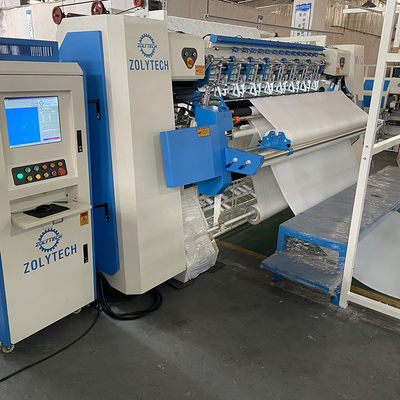

WV12 High speed computerized chain stitch computerized quilting machine for mattress 25.4mm needle distance



ZOLYTECH WV12 1200rpm multi-needle quilting machine high speed computerized chain stitch for quilts and comforters





1. Automatic lubrication system enables labor saving and long life of the machine



2. Japanese famous brand bearing and precise casting spare parts are used on the machine, which

ensures long life of the machine.



3. Automatic stop when up or bottom thread is broken, and both up and down safety infrared protection.



4. Delta VFD (variable-frequency driver) drives main shaft (Z shaft) and Panasonic servo driver & motor control the saddle (X shaft) and roller (Y shaft).



5.Both serial patterns and Tack & Jump patterns (360° and 180°) are available.



6. Controlling system based on Windows, CAD drawing.



7. Automatic stop when the pre-set processing length is finished, which is saving labor and easy

operation.



Dimension (L*W*H) 5400*1650*2050mm
Weight 4800kg
Quilting width 2450mm
Needle bar distance

50.8, 76.2, 127mm (5’’)

76.2, 76.2, 152.4mm (6’’)

Needle distance 25.4mm
X-axis movement displacement 304.8mm
Quilting thickness ≤80mm
Stitch length 3-7mm
Capacity 60-300 (m/hour)
Needle type 24/180 23/160 22/140 21/130
Main shaft speed 500-1200rpm
Voltage 380v/50hz 220v/60hz, 3-phase
Power 7KW



High Speed Chain Stitch Computerized Quilting Machine For Mattress 25.4mm Needle Distance 0

High Speed Chain Stitch Computerized Quilting Machine For Mattress 25.4mm Needle Distance 1High Speed Chain Stitch Computerized Quilting Machine For Mattress 25.4mm Needle Distance 2High Speed Chain Stitch Computerized Quilting Machine For Mattress 25.4mm Needle Distance 3High Speed Chain Stitch Computerized Quilting Machine For Mattress 25.4mm Needle Distance 4



FAQ

1. Q:Are you a Manufacturer?

A:Yes, we are a professional INTELLIGENT MATTRESS EQUIPMENT MANUFACTURER over 16 years.



2. Q: What supports will you provide during the COVID-19 period?
A: We provide install videos; on-line teaching service and 24 hours on-line stand-by.



3. Q: What's your payment terms?

A: T/T 30% in advance ,70% will be before shipment under FOB.

T/T 30% in advance ,70% against the copy of BL under CIF.

T/T 30% in advance ,70% LC at sight under CIF.

*The final explanation of the above payment method belongs to us.



4. Q: What's your delivery time?

A: Depending on the quantity of customers.

Usually mass production models will be delivered within 15 days after receiving deposit .

Customized models require negotiation.



5. Q: Whats your warranty time ? What you can supply to us after we bought your machine?

A: We provide one year warranty, all machine main parts can be replaced for free within 1 year if broken (not including error operation).

Our engineer available to provided overseas professional technical operation training.



6. Q: Can we visit your factory?

A: Warmly welcome, my friends! Once we have your schedule, we will arrange professional sales team to follow up.



7. Q: Where's your factory?

A: Our factory in Juijiang Huangji Crossroad, Jiujiang Town, Nanhai District, Foshan city, Guangdong Province, China.



8. Q: Can you supply other machines?

A: Yes. we also supply below machines and other raw materials:

Mattress Quilting Machine Series

Mattress Hemming Machine Series

Automatic Whole-Plant Mattress Production Line

Mattress (Pocket) Spring Machine Series

Mattress Packing and Rolling Production Line

Mattress Tape Edge Machine Series

Mattress Flanging Machine Series
Raw materials: Knitted cloth, Non-woven cloth, thread, etc.
