Quilting Width: | 2450 Mm | Max Thickness Of Material: | 80 Mm |
---|---|---|---|
Number Of Servo Motor: | 2 | Brand Of Servo Motor: | PANASONIC |
Power Of Servo Motor: | 1.5 Kw | Number Of Needle Bar: | 3 |
Speed: | 800 Rpm | Power: | 7 Kw |
Stitch Length: | 3-7 Mm | Needle Bar Distance: | 3 Inch |
Needle Distance: | 1 Inch | X Axis Displacement: | 12 Inch |
Needle Type: | 23#, 24#, 21#, 22# | Voltage: | 380v, 50hz, 3-phase |
Brand Of VFD: | DELTA | Operating System: | WINDOWS |
Tack & Jump: | Yes | Infrared Protection System: | Yes |
Warranty Period: | 1 Year |

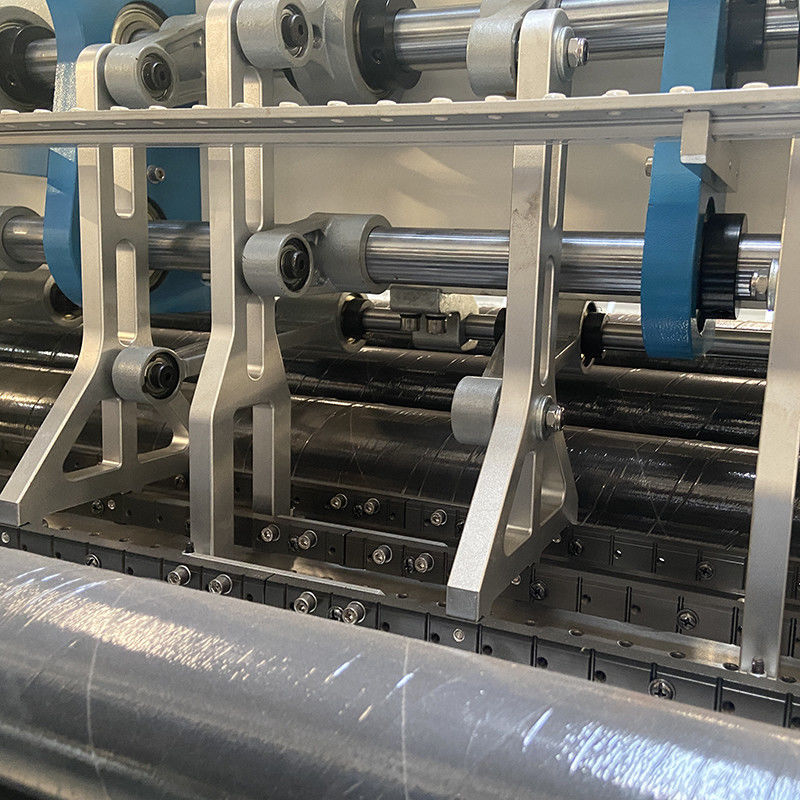

Needle bar and plate adopt double rocker mechanical manufacturing process, avoid the lube and dirty the fabric effectively.
Automatic stop when up or bottom thread is broken, and both up and down safety infrared protection.
Delta VFD (variable-frequency driver) drives main shaft (Z shaft), Panasonic servo driver & motor control the saddle (X shaft) and roller (Y shaft).
Both serial patterns and Tack & Jump patterns (360° and 180°) are available.
Controlling system based on Windows, CAD drawing.
Automatic stop when pre-set processing length is finished, which is saving labor and easy operation.
Automatic detection of machine running condition.
Stronger machine body makes it run more silently and stably.
Dimension (L*W*H) | 5400*1650*2050mm |
Weight | 4000kg |
Quilting width | 2450mm |
Needle bar distance |
50.8, 76.2, 127mm (5’’) 76.2, 76.2, 152.4mm (6’’) |
Needle distance | 25.4mm |
X-axis movement displacement | 304.8mm |
Quilting thickness | ≤80mm |
Stitch length | 3-7mm |
Capacity | 60-230 (m/hour) |
Needle type | 24/180 23/160 22/140 21/130 |
Main shaft speed | 300-800rpm |
Voltage | 380v/50hz 220v/60hz, 3-phase |
Power |
7kw
|
FAQ
1. Q:Are you a Manufacturer?
A:Yes, we are a professional INTELLIGENT MATTRESS EQUIPMENT MANUFACTURER over 16 years.
2. Q: What supports will you provide during the COVID-19 period?
A: We provide install videos; on-line teaching service and 24 hours on-line stand-by.
3. Q: What's your payment terms?
A: T/T 30% in advance ,70% will be before shipment under FOB.
T/T 30% in advance ,70% against the copy of BL under CIF.
T/T 30% in advance ,70% LC at sight under CIF.
*The final explanation of the above payment method belongs to us.
4. Q: What's your delivery time?
A: Depending on the quantity of customers.
Usually mass production models will be delivered within 15 days after receiving deposit .
Customized models require negotiation.
5. Q: Whats your warranty time ? What you can supply to us after we bought your machine?
A: We provide one year warranty, all machine main parts can be replaced for free within 1 year if broken (not including error operation).
Our engineer available to provided overseas professional technical operation training.
6. Q: Can we visit your factory?
A: Warmly welcome, my friends! Once we have your schedule, we will arrange professional sales team to follow up.
7. Q: Where's your factory?
A: Our factory in Juijiang Huangji Crossroad, Jiujiang Town, Nanhai District, Foshan city, Guangdong Province, China.
8. Q: Can you supply other machines?
A: Yes. we also supply below machines and other raw materials:
Mattress Quilting Machine Series
Mattress Hemming Machine Series
Automatic Whole-Plant Mattress Production Line
Mattress (Pocket) Spring Machine Series
Mattress Packing and Rolling Production Line
Mattress Tape Edge Machine Series
Mattress Flanging Machine Series
Raw materials: Knitted cloth, Non-woven cloth, thread, etc.
