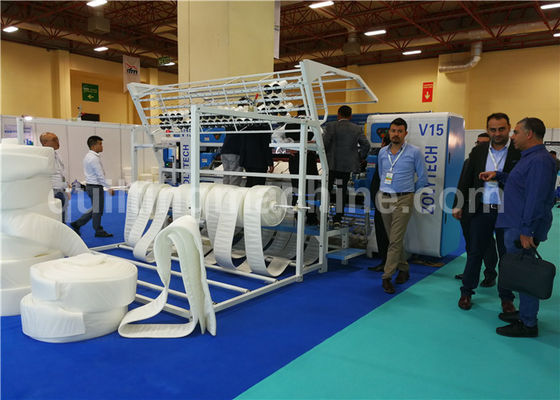

WV 15 multi-needle quilting machine

Basic Information
Place of Origin: CHINA
Brand Name: zolytech
Certification: CE
Model Number: wv15
Minimum Order Quantity: 1 pcs
Price: USD 50000-68000 PCS
Packaging Details: wooden box
Delivery Time: 30 days
Supply Ability: 30 pcs /month
Detail Information
Specification: 5400*1650*2050mm Weight: 5500kg
Machine Stitch Length: 3-7mm Quilting Width: 2450mm
Needle Distance: 25.4mm Max Quilting Thickness: 80mm
Efficient: 80-350m/hour Needle Type: 24/180 23/160 22/140
Main Shaft Speed: 600-1500rpm Power: 11kw

Product Description







Function :



* Newly updated software enables quick design changing of operation



* Using air cylinder for thread cutting tail length.



* Running state detection and prompt,shows clearly the machine running state



* Automatic lubrication system ( that works on anti friction component, ball screw and linear guideway ) enables labor saving and long life of the machine.



* Optional : 0.5 inch needle distance, capable of making more patterns.



* Larger diameter of main shaft and needle bar shaft ensures the stable performance during the machine working in high speed.



* Automatic detection of machine running condition.



* Delta VFD( variable-frequency driver ) drives main shaft (Zshft) and panasonic servo driver & motor control the saddle (X shaft ) and roller



* Optional : slitting system. precisely slitting after quilting for making mattress tape.







Parts :





WV 15 multi-needle quilting machine 0                              Slitting system













Sturdy needle row suppor                   WV 15 multi-needle quilting machine 1



















WV 15 multi-needle quilting machine 2                      Independent thread break detector









patterns:



WV 15 multi-needle quilting machine 3 WV 15 multi-needle quilting machine 4 WV 15 multi-needle quilting machine 5 WV 15 multi-needle quilting machine 6



WV 15 multi-needle quilting machine 7 WV 15 multi-needle quilting machine 8 WV 15 multi-needle quilting machine 9 WV 15 multi-needle quilting machine 10









Application:







WV 15 multi-needle quilting machine 11 WV 15 multi-needle quilting machine 12WV 15 multi-needle quilting machine 13





WV 15 multi-needle quilting machine 14 WV 15 multi-needle quilting machine 15WV 15 multi-needle quilting machine 16











system parameter:



dimension 5400*1650*2050mm
weight 5500kg
quilting width  2450mm
X-axis movement displacement 304.8mm
max stitch length  7mm
power  11kw
needle type 24/80 23/160 22/140
max main shaft speed 600-1500 rpm



To meet customer's all needs, we are devoted to make customerize type, and promise high quality and good after-sales service.
