4000kg Automatic Mattress Quilting Machine High Speed 800Rpm

Basic Information
Place of Origin: CHINA
Brand Name: ZOLYTECH
Certification: CE certificate and ISO 9001:2000 certificate
Model Number: WV8
Minimum Order Quantity: 1 pcs
Price: USD 20000-30000 pcs
Packaging Details: Wooden box
Delivery Time: 30 days
Supply Ability: 30 pcs /month
Detail Information
Model: WV8 Dimension: 5400*1650*2050mm
Power: 7kw Capacity: 60-230m/hour
Shaft Speed: 300-1000rpm Needle Distance: 25.4mm
Quilting Thickness: 80mm Stitch Length: 3-7mm
Weight: 4000kg
High Light:

4000kg Automatic Mattress Quilting Machine

,

800Rpm Mattress Quilting Machine

,

4000kg High Speed Quilting Machine


Product Description

Automatic High Speed Mattress Quilting Machine With 800 Rpm



Technical parameters :



power  7kw
voltage 380v/50hz  220v/60hz,3-phase
quilting width  2450mm
needle distance  25.4mm
stitch length 3-7mm
speed  60-230 m/hour
main shaft speed  300-1000 rpm
x-axis movement displacement 304.8 mm
weight 4000kg
quilting thickness  80mm

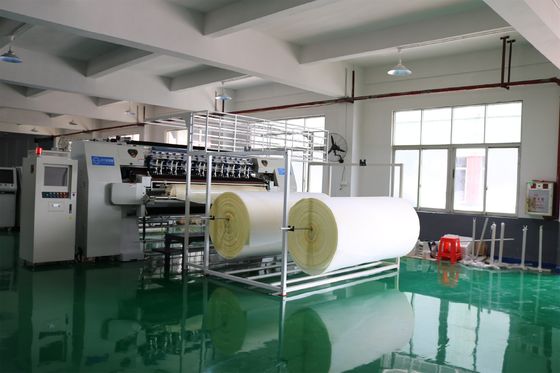

Parts of machine:



4000kg Automatic Mattress Quilting Machine High Speed 800Rpm 0   4000kg Automatic Mattress Quilting Machine High Speed 800Rpm 1







Application :





    4000kg Automatic Mattress Quilting Machine High Speed 800Rpm 2        4000kg Automatic Mattress Quilting Machine High Speed 800Rpm 3



Advantages :



*  Top fabric tray feeding device with adjustable brake, gives a constant and accurate top

fabric tension control to any kind of fabric, independent of the rolls diameter.



* Needle bar and plate adopt double rocker machanical manufacturing process, avoid the lube and dirty the fabric effectively.



* Automatic stop when up or bottom thread is broken, and both up and down safety infrared protection.



* Automatic stop when pre-seting processing length is finished, which is saving labor and easy operation.



* Stronger machine body makes it run more silently and stably.



CE Certificate



CNC precision control system, no need to adjust the press plate’s position when the thickness of quilting material varies



Note :



if special quilting function or size is required, please have it made to order.
