Computerized chain stitch multi needle quilting machine with fashion style

Basic Information
Place of Origin: CHINA
Brand Name: ZOLYTECH
Certification: CE
Model Number: WV8
Minimum Order Quantity: 1 pcs
Price: USD 10000-20000/pcs
Packaging Details: wooden box
Delivery Time: 30days
Supply Ability: 30 pcs/month
Detail Information
Dimension: 5400*1650*2050 Mm Weight: 4000kg
Quilting Width: 2450 Mm Needle Distance: 25.4mm
Stitch Length: 3-7mm Capacity: 60-230 M/hour

Product Description

1. Needle bar and plate adopt double rocker mechanical manufacturing process, avoid the lube and dirty the fabric effectively.

2. Automatic stop when up or bottom thread is broken, and both up and down safety infrared protection.

3. Delta VFD drives and main shaft, panasonic servo driver& motor control the saddle and roller.

4. Both continuous patterns and tack&jump patterns.

5. Controlling system based on windows, CAD drawing.

6. Automatic stop when pre-set processing length is finished, which is saving labor and easy operation.

dimension                5400*1650*2050 mm
weight                         4000 kg
quilting width                       2450 mm
quilting thickness                           80mm

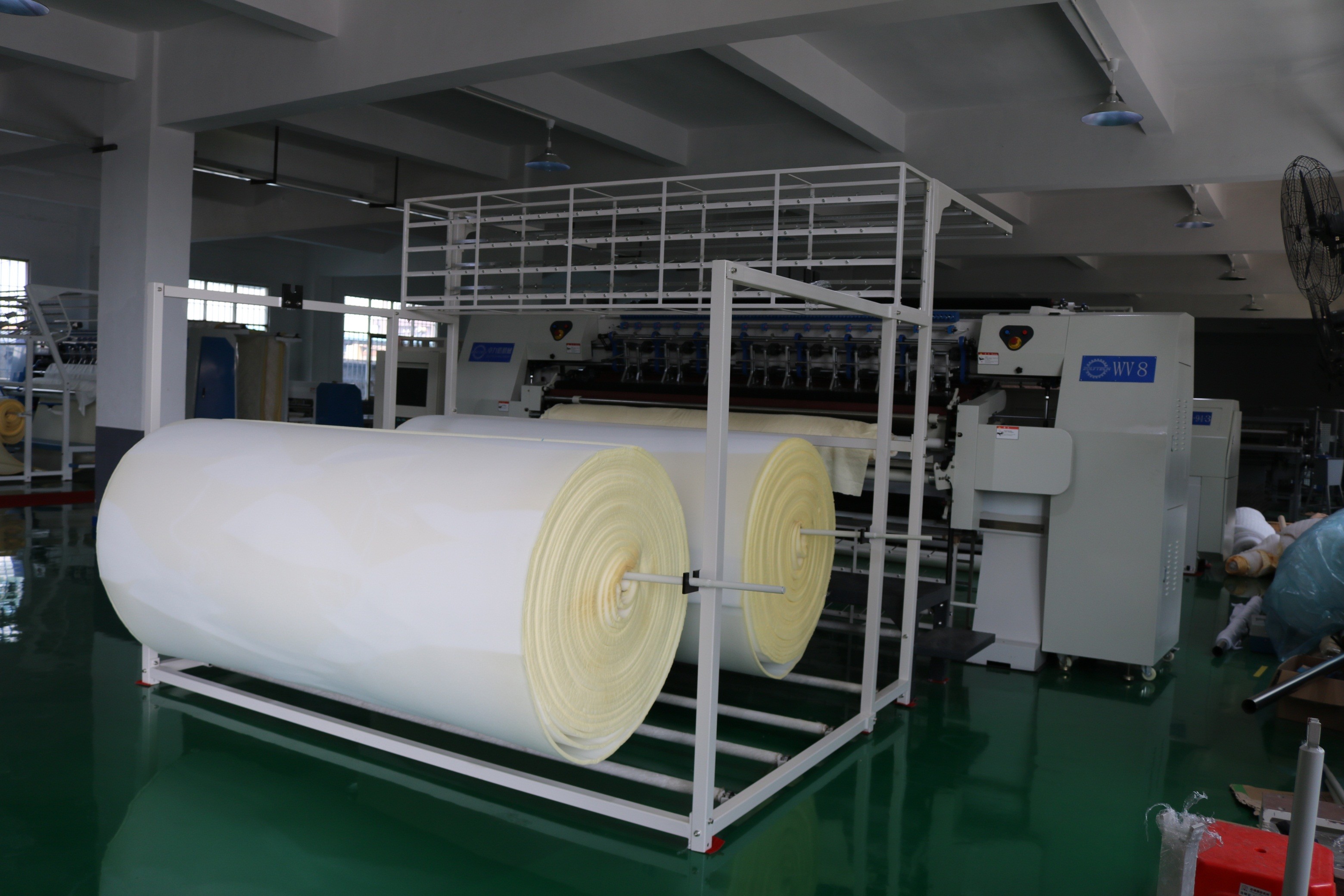

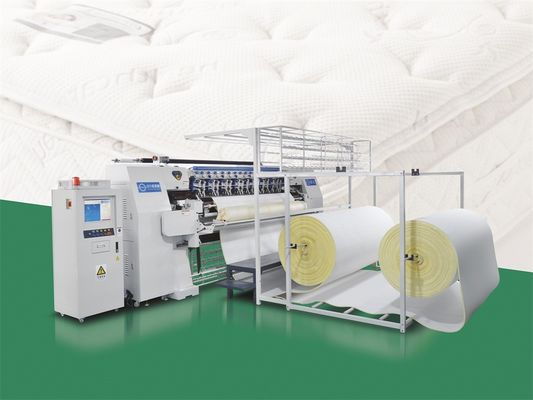

Computerized chain stitch multi needle quilting machine with fashion style 0  Computerized chain stitch multi needle quilting machine with fashion style 1
