Dimension (L*W*H): | 5400*1650*2050mm | Weight: | 4800kg |
---|---|---|---|
Needle Bar Distance: | 50.8, 76.2, 127mm (5’’) 76.2, 76.2, 152.4mm (6’’) | X-axis Movement Displacement: | 304.8mm |
Stitch Length: | 3-7mm | Needle Type: | 24/180 23/160 22/140 21/130 |
High Light: | CE Multi Needle Quilting Machine,2450mm Width Duvet Quilting Machine,2450mm Width Multi Needle Quilting Machine |

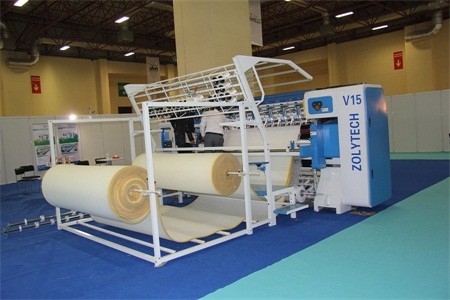

CE Certificated Computerized Multi Needle Quilting Machine Duvet Quilting Machine
Advantages:
1. Automatic stop when pre-set processing length is finished, which is saving labor and easy operation.
2. Automatic detection of machine running condition.
3. Automatic stop when up or bottom thread is broken, and both up and down safety infrared protection.
4. Japanese famous brand bearings and precise casting spare parts are used on the machine, which
ensures long life of the machine.
5. Automatic lubrication system enables labor saving and long life of the machine.
6. Delta VFD (variable-frequency driver) drives main shaft (Z shaft), Panasonic servo driver & motor control the saddle (X shaft) and roller (Y shaft).
Technical Parameters:
Dimension (L*W*H) | 5400*1650*2050mm |
Quilting width | 2450mm |
Needle distance | 25.4mm |
Stitch length | 3-7mm |
Needle type | 24/180 23/160 22/140 21/130 |
Quilting thickness | ≤80mm |
