94 Inch Mattress Quilting Machine 3 Phase 220v 60hz Quilting Equipment

Basic Information
Place of Origin: CHINA
Brand Name: ZOLYTECH
Certification: CE
Model Number: WV12
Minimum Order Quantity: 1 pcs
Price: USD 10000-20000 pcs
Packaging Details: Wooden box
Supply Ability: 30 / pcs / month
Detail Information
Quilting Width: 2450mm X-axis Movement Displacement: 304.8mm
Stitch Length: 3-7mm Capacity: 60-300 (m/hour)
Needle Type: 24/180 23/160 22/140 21/130 Voltage: 380v/50hz 220v/60hz, 3-phase
High Light:

94 Inch Mattress Quilting Machine

,

220v 60hz Mattress Quilting Machine

,

220v 60hz Quilting Equipment


Product Description

Digital Control Computerized Chain Stitch Multi Needle Quilting Machine 94 Inch





Advantages:



1. Automatic detection of machine running condition.

2. Automatic stop when pre-set processing length is finished, which is saving labor and easy operation.

3. Both serial patterns and Tack & Jump patterns (360° and 180°) are available.

4. Controlling system based on Windows, CAD drawing.

5. Delta VFD (variable-frequency driver) drives main shaft (Z shaft), Panasonic servo driver & motor control the saddle (X shaft) and roller (Y shaft).

6. Automatic stop when up or bottom thread is broken, and both up and down safety infrared protection.





Technical Parameters :



Dimension (L*W*H) 5400*1650*2050mm
Power 7KW
Voltage 380v/50hz 220v/60hz, 3-phase
Needle type 24/180 23/160 22/140 21/130
Stitch length 3-7mm
Needle bar distance

50.8, 76.2, 127mm (5’’)76.2, 76.2, 152.4mm (6’’)

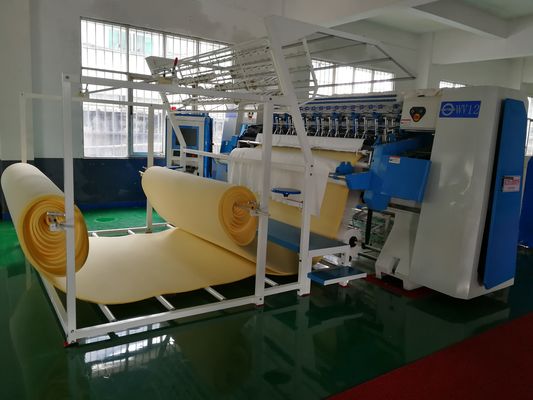

94 Inch Mattress Quilting Machine 3 Phase 220v 60hz Quilting Equipment 0

94 Inch Mattress Quilting Machine 3 Phase 220v 60hz Quilting Equipment 1
