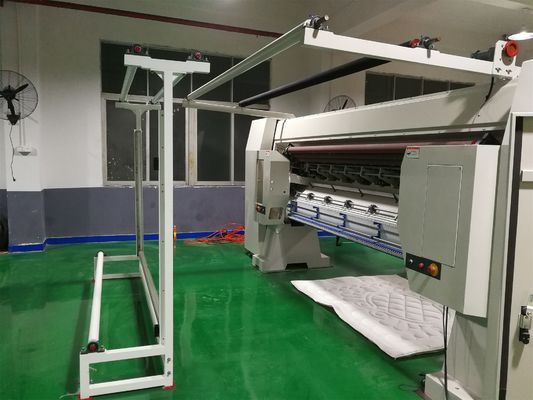

CE CNC Commercial Quilting Machine 800rpm Double Rocker Mechanical

Basic Information
Place of Origin: CHINA
Brand Name: ZOLYTECH
Certification: CE
Model Number: WV8
Minimum Order Quantity: 1 pcs
Price: USD 10000-20000 pcs
Packaging Details: Wooden box
Supply Ability: 30 /pcs /month
Detail Information
Dimension: 5400*1650*2050mm Quilting Width: 2450 Mm
Spindle Speed: 300-800 Rpm Weight: 4000 KG
Quilting Thickness: ≤80 Mm Capacity: 60-230(m/hour)
High Light:

CE CNC Commercial Quilting Machine

,

Commercial Quilting Machine 800rpm

,

800rpm cnc quilting machine


Product Description

Computerized Chain Stitch Multi Needle Quilting Machine With 800 rpm



Dimension (L*W*H) 5400*1650*2050mm
Weight 4000kg
Quilting width 2450mm
Needle bar distance

50.8, 76.2, 127mm (5’’)

76.2, 76.2, 152.4mm (6’’)

Needle distance 25.4mm
X-axis movement displacement 304.8mm
Quilting thickness ≤80mm
Stitch length 3-7mm
Capacity 60-230 (m/hour)
Needle type 24/180 23/160 22/140 21/130
Main shaft speed 300-800rpm
Voltage 380v/50hz 220v/60hz, 3-phase
Power

7kw



Advantages:

1. Automatic stop when up or bottom thread is broken, and both up and down safety infrared protection.

2. Needle bar and plate adopt double rocker mechanical manufacturing process, avoid the lube and dirty the fabric effectively.

3. Both serial patterns and Tack & Jump patterns (360° and 180°) are available.

4. Automatic stop when the pre-set processing length is finished, which is saving labor and easy operation.

5. Automatic detection of machine running condition.

CE CNC Commercial Quilting Machine 800rpm Double Rocker Mechanical 0CE CNC Commercial Quilting Machine 800rpm Double Rocker Mechanical 1
