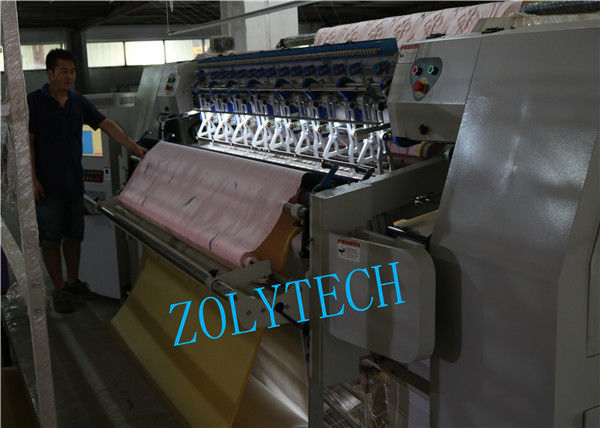

DELTA VFD Digital Computer Guided Quilting Machine Windows Operating

Basic Information
Place of Origin: CHINA
Brand Name: ZOLYTECH
Certification: CE
Model Number: WV8
Minimum Order Quantity: 1 PIECE
Price: USD 20000-50000
Packaging Details: STANDARD EXPORT PACKING
Delivery Time: 40 DYAS
Supply Ability: 30 PIECES PER MONTH
Detail Information
Quilting Width: 2450 Mm Max Thickness Of Material: 80 Mm
Brand Of VFD: DELTA Operating System: WINDOWS
Tack & Jump: Yes Warranty Period: 1 Year
High Light:

DELTA VFD Computer Guided Quilting Machine

,

DELTA VFD digital quilting machine

,

Windows Operating digital quilting machine


Product Description

Computerized Multi Needle Industrial Quilting Machine Windows Operating System





Dominent Features:



Needle bar and plate adopt double rocker mechanical manufacturing process, avoid the lube and dirty the fabric effectively.

Automatic stop when up or bottom thread is broken, and both up and down safety infrared protection.

Delta VFD (variable-frequency driver) drives main shaft (Z shaft), Panasonic servo driver & motor control the saddle (X shaft) and roller (Y shaft).

Both serial patterns and Tack & Jump patterns (360° and 180°) are available.

Controlling system based on Windows, CAD drawing.

Automatic stop when pre-set processing length is finished, which is saving labor and easy operation.

Automatic detection of machine running condition.

Stronger machine body makes it run more silently and stably.





Technical Datas:


Dimension (l*w*h): 5400*1650*2050mm
Weight: 4000kg
Quilting width: 2450mm
Needle bar distance: 50.8, 76.2, 127mm (5’’)
76.2, 76.2, 152.4mm (6’’)
Needle distance: 25.4mm
X-axis movement displacement: 304.8mm
Quilting thickness: ≤80mm
Stitch length: 3-7mm
Capacity: 60-230 (m/hour)
Needle type: 24/180 23/160 22/140 21/130
Main shaft speed: 300-800rpm
Voltage: 380v/50hz 220v/60hz, 3-phase
Power: 7kw





Pattern Collection:







DELTA VFD Digital Computer Guided Quilting Machine Windows Operating 0
