| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZOLYTECH |
| Certification: | CE |
| Model Number: | WV8 |
| Minimum Order Quantity: | 1 PIECE |
| Price: | USD 20000-50000 |
| Packaging Details: | STANDARD EXPORT PACKING |
| Delivery Time: | 40 DYAS |
| Supply Ability: | 30 PIECES PER MONTH |
| Max Thickness Of Material: | 80 Mm | Speed: | 800 Rpm |
|---|---|---|---|
| Power: | 7 Kw | Stitch Length: | 3-7 Mm |
| Needle Type: | 23#, 24#, 21#, 22# | Voltage: | 380v, 50hz, 3-phase |
| High Light: | 380V 50HZ Multi Needle Quilting Machine,7kw Mattress Manufacturing Equipment,Multi Needle Quilting Machine 7kw |
||

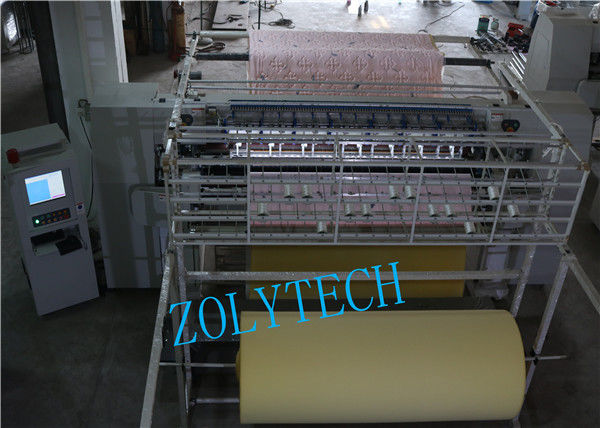

Industrial Computerized Multi Needle Quilting Machine Mattress Manufacturing Equipment
1 ) Needle bar and plate adopt double rocker mechanical manufacturing process, avoid the lube and dirty the fabric effectively.
2 ) Automatic stop when up or bottom thread is broken, and both up and down safety infrared protection.
3 ) Delta VFD (variable-frequency driver) drives main shaft (Z shaft), Panasonic servo driver & motor control the saddle (X shaft) and roller (Y shaft).
4 ) Both serial patterns and Tack & Jump patterns (360° and 180°) are available.
5 ) Controlling system based on Windows, CAD drawing.
6 ) Automatic stop when pre-set processing length is finished, which is saving labor and easy operation.
7 ) Automatic detection of machine running condition.
8 ) Stronger machine body makes it run more silently and stably.
| Dimension (L*W*H) | 5400*1650*2050mm |
| Weight | 4000kg |
| Quilting width | 2450mm |
| Needle bar distance |
50.8, 76.2, 127mm (5’’) 76.2, 76.2, 152.4mm (6’’) |
| Needle distance | 25.4mm |
| X-axis movement displacement | 304.8mm |
| Quilting thickness | ≤80mm |
| Stitch length | 3-7mm |
| Capacity | 60-230 (m/hour) |
| Needle type | 24/180 23/160 22/140 21/130 |
| Main shaft speed | 300-800rpm |
| Voltage | 380v/50hz 220v/60hz, 3-phase |
| Power |
7kw
|
