| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZOLYTECH |
| Certification: | CE |
| Model Number: | WV8 |
| Minimum Order Quantity: | 1 PIECE |
| Price: | USD 20000-50000 |
| Packaging Details: | STANDARD EXPORT PACKING |
| Delivery Time: | 40 DYAS |
| Supply Ability: | 30 PIECES PER MONTH |
| Quilting Width: | 2450 Mm | Max Thickness Of Material: | 80 Mm |
|---|---|---|---|
| Number Of Servo Motor: | 2 | Brand Of Servo Motor: | PANASONIC |
| Power Of Servo Motor: | 1.5 Kw | Speed: | 800 Rpm |
| High Light: | 800RPM Computer Guided Quilting Machine,1.5kw Computer Guided Quilting Machine,1.5kw mattress manufacturing machines |
||

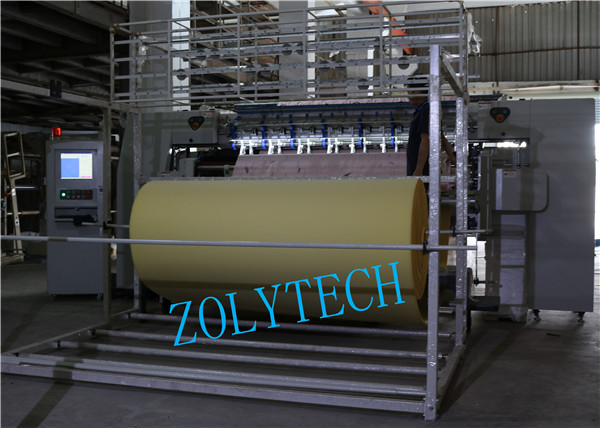

800 Rpm Multi Needle Computer Guided Quilting Machine , Mattress Making Machine
1 . Needle bar and plate adopt double rocker mechanical manufacturing process, avoid the lube and dirty the fabric effectively.
2. Automatic stop when up or bottom thread is broken, and both up and down safety infrared protection.
3 . Delta VFD (variable-frequency driver) drives main shaft (Z shaft), Panasonic servo driver & motor control the saddle (X shaft) and roller (Y shaft).
4 . Both serial patterns and Tack & Jump patterns (360° and 180°) are available.
5 . Controlling system based on Windows, CAD drawing.
6 . Automatic stop when pre-set processing length is finished, which is saving labor and easy operation.
7 . Automatic detection of machine running condition.
8 . Stronger machine body makes it run more silently and stably.
| Dimension (L*W*H) | 5400*1650*2050mm |
| Weight | 4000kg |
| Quilting width | 2450mm |
| Needle bar distance |
50.8, 76.2, 127mm (5’’) 76.2, 76.2, 152.4mm (6’’) |
| Needle distance | 25.4mm |
| X-axis movement displacement | 304.8mm |
| Quilting thickness | ≤80mm |
| Stitch length | 3-7mm |
| Capacity | 60-230 (m/hour) |
| Needle type | 24/180 23/160 22/140 21/130 |
| Main shaft speed | 300-800rpm |
| Voltage | 380v/50hz 220v/60hz, 3-phase |
| Power |
7kw
|
