| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZOLYTECH |
| Certification: | CE |
| Model Number: | ZLT-PSD180 |
| Minimum Order Quantity: | 1 Pcs |
| Price: | USD 190000-210000 |
| Packaging Details: | EXPORT STANDARD PACKING |
| Delivery Time: | 30 workdays |
| Supply Ability: | 5 pcs/month |
| Production Speed: | 180pcs/mkin | Non-woven Supply: | 65-90g/m² |
|---|---|---|---|
| Non-woven Width: | 260-680mm | Pocket Spring Height: | 100-250mm |
| Wire Dia: | φ1.3-2.3mm | Spring Core Dia: | φ38-75mm |
| Total Power: | 40KW For Single Wire/43KW For Double Wires | Power Supply: | 3AC 380V |
| Air Requirement: | 0.3m³/min 0.8MPa40 | Gross Weight: | 5000kg |
| Overall Dimension: | 10000*1650*2000mm | ||
| High Light: | 250mm Pocket Spring Coiling Machine,Non Shuttle Pocket Spring Coiling Machine |
||

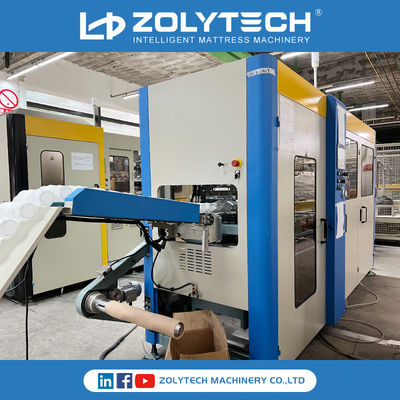

Automatic Pocket Spring Coiling Machine commputerized system pocket spring production line 380V/220V
ZOLYTECH ZLT-PSD180 pocket spring height 260-680mm 180pcs/min computerized Mattress Spring Coiling Machine
Technical parameters:
| Efficiency | 180pcs/min |
| Non-woven supply | 65-90g/m² |
| Non-woven width | 260-680mm |
| Pocket spring height | 60-250mm |
| Wire dia. | φ1.3-2.3mm |
| Spring core dia. | φ38-75mm |
| Total power | 40KW for single wire / 43KW for double wires |
| Weight | 4000kg for single wire / 5000kg for double wires |
| Spring shape | Standard versions:barreland, cylindrical |
A new generation of patented machine. Providing spring strings with zones from two different wire by D180.
The heat-treatment device can adopt to differnt spring height, easy for adjustment.
U structure converying belt, carring over 60 magnetic conveying units / good cooling effect.
Real-time monitoring of heat-treatment / intelligent adjustment of temperature.
Automatic non-woven feeder system, material and labor saving.
Multiple fault detecting device, reducing wastage.
Nice structure, easy operating for users.
Special protective device.
Intelligent Mattress Pocket Spring Production Line
It's an ideal accompaliment of pocket spring assembling machine (Model: ZLT-PSA99)
Easy operation; 1 operater only; labor saving significantly!
FAQ
1. Q:Are you a Manufacturer?
A:Yes, we are a professional INTELLIGENT MATTRESS EQUIPMENT MANUFACTURER over 16 years.
2. Q: What supports will you provide during the COVID-19 period?
A: We provide install videos; on-line teaching service and 24 hours on-line stand-by.
3. Q: What's your payment terms?
A: T/T 30% in advance ,70% will be before shipment under FOB.
T/T 30% in advance ,70% against the copy of BL under CIF.
T/T 30% in advance ,70% LC at sight under CIF.
*The final explanation of the above payment method belongs to us.
4. Q: Whats your warranty time ? What you can supply to us after we bought your machine?
A: We provide one year warranty, all machine main parts can be replaced for free within 1 year if broken (not including error operation).
Our engineer available to provided overseas professional technical operation training.
5. Q: How to install and operate the machine after received the machine?
A: We will provide pictures, videos and manual to guide you to install and operate. We also provide the technician to door service if you need.
6. Q: Can you supply other machines?
A: Yes. we also supply below machines and other raw materials:
Mattress Quilting Machine Series
Mattress Hemming Machine Series
Automatic Whole-Plant Mattress Production Line
Mattress (Pocket) Spring Machine Series
Mattress Packing and Rolling Production Line
Mattress Tape Edge Machine Series
Mattress Flanging Machine Series
Raw materials: Knitted cloth, Non-woven cloth, thread, etc.
