2-5mm Stitch Mattress Flanging Machine For mattress production

Basic Information
Place of Origin: CHINA
Brand Name: ZOLYTECH
Certification: CE
Model Number: FM1
Minimum Order Quantity: 1 pcs
Price: USD 5000-10000 PCS
Packaging Details: WOODEN BOX
Delivery Time: 30DAYS
Supply Ability: 100 PCS /MONTH
Detail Information
Model NO: PEGASUS 3200 Type: Sewing Machine
Max Speed: 3000rpm Flanging Width: 27mm
Flanging Thickness: 15-80mm Stitch Length: 2-5mm
Needle Model: DPX5 21# Press Food Lift Height: 15mm
Air Pressure: 0.4-0.8 Mpa Power: 750 W
High Light:

5mm Stitch Mattress Flanging Machine


27mm Width Mattress Flanging Machine


5mm Stitch Flanging Machine For Cloth

Product Description

Heavy duty mattress flanging machine for mattress production





This Model can obtain two lines of parslled of double chainstitch seams simultaneously. It is suitable for lap seaming and adorn seaming on garments, under-wear beddings thin package and leather goods. The optinonal needls gauge has five specifications.


Japanese Pegasus high speed straight needle sewing head.


Double auto oiling system ensuring sufficient lubrication, with cartridge oil filter, easy for replacement & cleaning.


Push - button type stitch length reaulator, changing the cam is not necessary,


with thread & needle cooling system, avoid its breakage and avoid the stitch skipping either.


Double needle five thread synchronous structure with upper feeding belt and lower feed dogs system ensures precise feeding and perfect seam, and avoid material wrinkles during sewing process.


The sewing speed is controlled with imported needle position motor and control box.


Equipped with pneumatic auto presser foot and special encoder to position needles, silence and stable running.



Technical parameters:


sewing head model  PEGASUS 3200
max speed  3000 rpm
flanging width  27mm
flanging thickness  15-80mm
stitch length  2-5mm
needle model  DPX5 21#
press food lift height 15mm
air pressure 0.4-0.8Mpa
power 750w
voltage single-phase, 220v/50hz

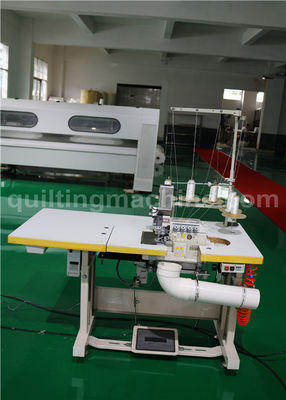

2-5mm Stitch Mattress Flanging Machine For mattress production 0   2-5mm Stitch Mattress Flanging Machine For mattress production 1



This machine is used for flanging mattress panel and over-thick fabric. it is also able to sew non-woven fabric together with the panel.
