| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZOLYTECH |
| Certification: | CE |
| Model Number: | S80 |
| Minimum Order Quantity: | 1 pcs |
| Price: | USD 10000-20000 PCS |
| Packaging Details: | Wooden box |
| Supply Ability: | 40 /pcs/ month |
| Spring Ring: | 4-7roll | Diameter Of Spring: | 62-95mm |
|---|---|---|---|
| Height Of Spring: | 80-190mm | Voltage: | 380V/50Hz, 220V/60Hz, 3-Phase |
| Motor Power: | 5.5KW | Heat Treatment Power: | 15KW |
| High Light: | 7 Roll Mattress Spring Coiling Machine,CE CNC Mattress Spring Coiling Machine,7 Roll cnc spring coiling machine |
||

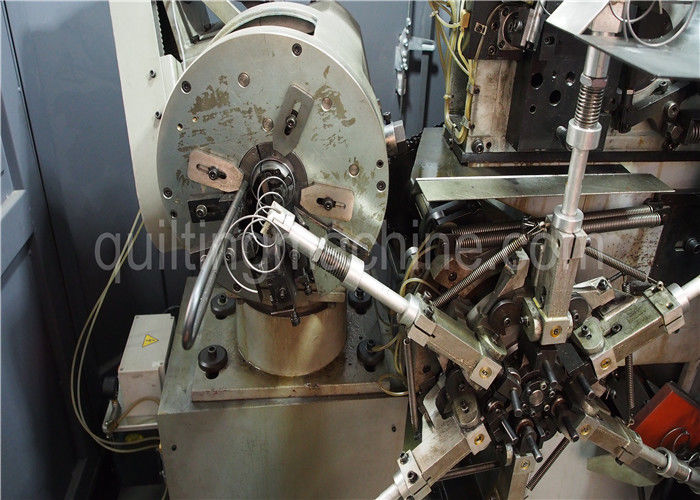

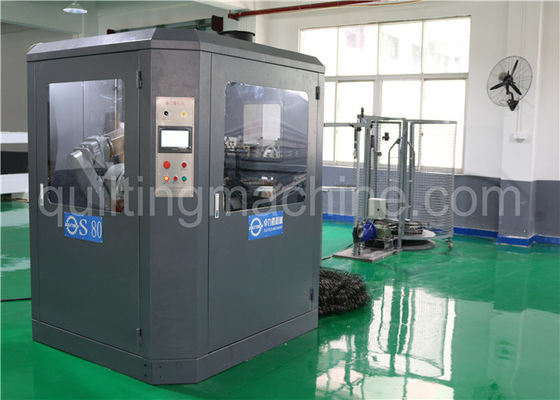

Long Life Automatic Bonnell Spring Coiling Machine With Heat Treatment System
Advantages:
1. This machine is an automatic equipment for making spiral mattress spring. It combines coiling, knotting, heat treatment and out put total four procedures together.
2. It is characterized with nice structure, easy adjusting, stable performance, high productivity.
3. It adopts worm and gear decelerator, regulation of speed can be controlled by frequency transformer, lubricating system can be controlled by computer.
Technical Parameters:
| Motor power | 5.5KW |
| Dimension (L*W*H) |
1500*1500*1600mm |
| Heat treatment power | 15KW |
| Weight | 2500KG |
| Spring ring | 4-7roll |
| voltage | 380V/50Hz, 220V/60Hz, 3-Phase |
