ZOLYTECH CNC Industrial Quilting Machine High Speed 300-800rpm

Basic Information
Place of Origin: CHINA
Brand Name: ZOLYTECH
Certification: CE
Model Number: YS 128''-3
Minimum Order Quantity: 1 pcs
Price: USD 10000-20000 pcs
Packaging Details: Wooden box
Supply Ability: 30 / pcs / month
Detail Information
Dimension: 5560*1370*1780mm Quantity Of Needle Bar: 3
Quilting Width: 3300mm Space Between Needles Bars: 76.2, 152.4mm
Space Between Needles: 25.4mm X-axis Movement Displacement: 304.8mm
Main Shaft Speed: 300-800rpm Total Power Required: 4.0kw
High Light:

ZOLYTECH CNC Industrial Quilting Machine

,

800rpm Industrial Quilting Machine

,

800rpm high speed quilting machine


Product Description



High Precision Computerized Industrial Lockstitch Sewing Machine Cnc System





1. Panasonic servo drive system.



2. Needle bar and press plate are connected by cam-free double-swinging device, which is with high precision and durable. This structure can avoid lubrication and dirty material effectively.



3. Both serial patterns and Tack & jump patterns (360° and 180°)are available.



4. The machine can automatically stop when the up thread breaks.



5. New generation of CNC system, advanced machine structure, high precision quilting, dispense with too

much parameter adjustment or pattern modification during quilting.



6. Extreme precision with 360 intricated patterns including bartack and jump patterns with automatic

top thread cut.



7. High performance aircraft aluminium-alloy-bushless needle-drive parallelogram system assuring

a smooth and frictionless high speed round the clock working without any maintenance.





Application :

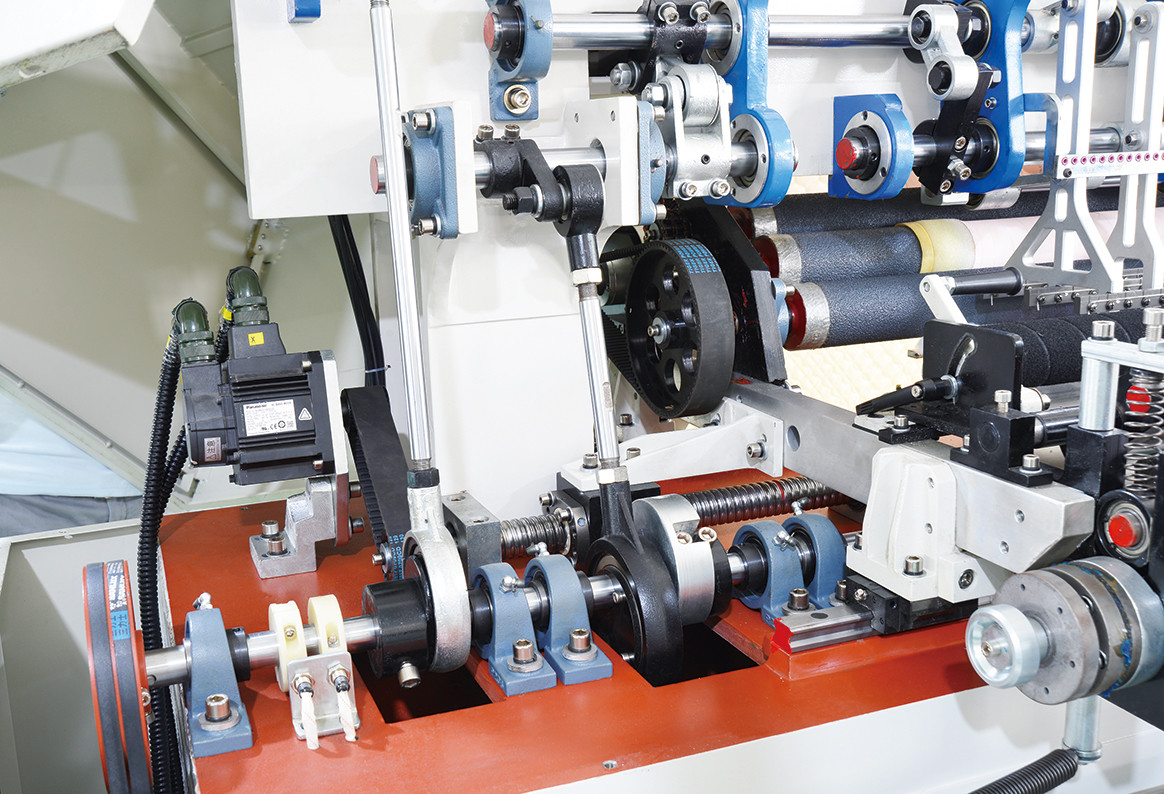

   ZOLYTECH CNC Industrial Quilting Machine High Speed 300-800rpm 0   ZOLYTECH CNC Industrial Quilting Machine High Speed 300-800rpm 1









Technical parameters :



model  YS-128-3
dimension 5560*1370*1780mm
quiantity of needle bar 3
quilting width  3300mm
gross weight 3800kg
total power required 5.5kw
model of needle  14-21#
speed of production 60-100 m/hour
stitch length 2-7mm
main shaft speed  300-800rpm
thickness of quilting  30mm
space between needle bars 76.2, 152.4
