380V Single Needle Quilting Machine Lock Stitch Automatic Feeding

Basic Information
Place of Origin: CHINA
Brand Name: ZOLYTECH
Certification: CE
Model Number: DZ1
Minimum Order Quantity: 1 PIECE
Price: US DOLLAR 20000-50000
Delivery Time: 40 DAYS
Supply Ability: 20 PIECES PER MONTH
Detail Information
Max Speed: 2200 Rpm Gross Weight: 3500 Kg
Voltage: 380 V / 220 V Stitch Length: 2~6 Mm
Needle Type: 19 / 21 Size: 10500 *4530 * 2050 Mm
High Light:

Automatic Feeding Single Needle Quilting Machine


380V Single Needle Automatic quilting machine


Lock Stitch computerised quilting machine

Product Description

380V Computerized Single Needle Quilting Machine Lock Stitch Quilting Machine



  1. Advanced qualified lock stitch sewing head, rotating speed can be up to 2200RPM.
  2. Diagnostic testing for thread broken and pattern compensation.
  3. Memories restart all patterns after stop quilting.
  4. 360° T&J and simple pattern, more than 200 patterns.
  5. Capable pattern-designing software can adopt various quilting file and quilting system.
  6. Daily output counter and total output counter.
  7. Needle arrangement and pattern showing.
  8. Automatic needle lift, pneumatic thread cutting and thread break detector.
  9. Pattern compensation and correction.
  10. Servo driver motor operations.
  11. Automatic material feeding and cutting device.


Max quilting width ≤2400mm
Max rotating Speed Of Needle 2200rpm
Max quilting Thickness ≤80mm
Capacity 40-120m/h
Stitch Length 2-6mm
Needle Model 21# , 19 #
Gross Weight 3500KG
Total Power 11KW
Voltage 380V/50Hz, 220V/60Hz, 3-phase,
Overall Dimension 10500x4530x2050mm

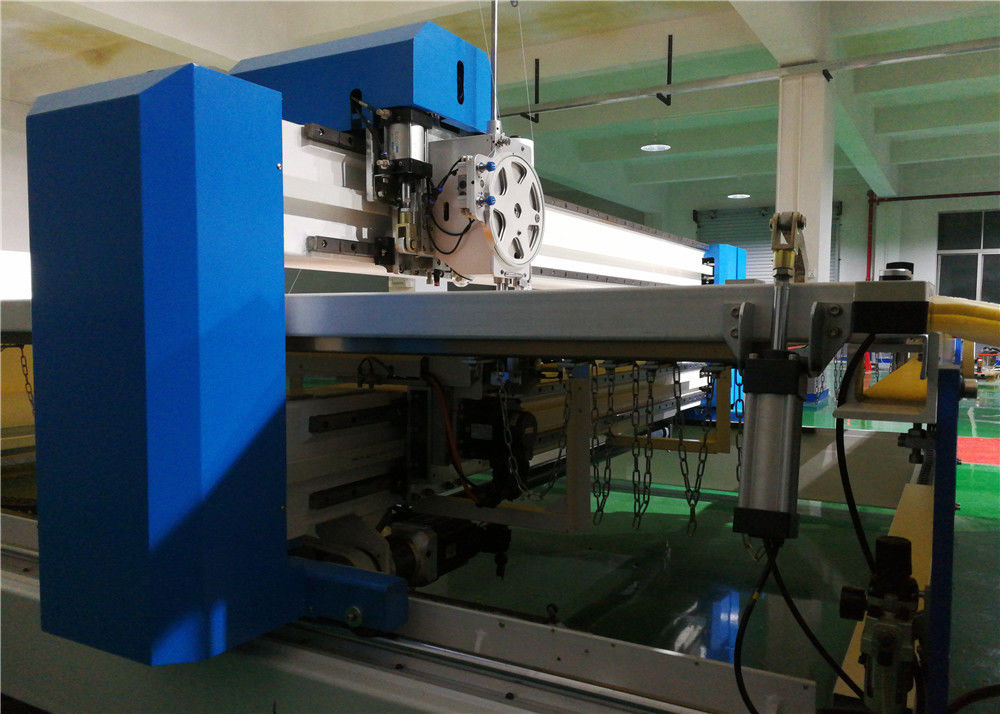

380V Single Needle Quilting Machine Lock Stitch Automatic Feeding 0

380V Single Needle Quilting Machine Lock Stitch Automatic Feeding 1
